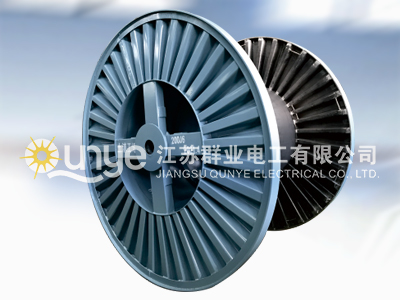

Applicable to cables, ropes, and stranding. Dimension either as per customers’ specifications or China national standards, JB/T7600.4-2008, and DIN46395; used for in-plant circulation.

型号 规格
| d1 | d2 | d3 | d4 | d5 | e | l1 | l2 | V1dm3 |
800 | 800 | 400 | 100 | 80 | 40 | 100 | 600 | 500 | 189 |
900 | 900 | 450 | 670 | 560 | 267 |
1000 | 1000 | 500 | 100/158 | 80 | 40 | 160 | 750 | 630 | 371 |
1120 | 1120 | 560 | 850 | 710 | 525 |
1250 | 1250 | 630 | 950 | 800 | 732 |
1400 | 1400 | 710 | 65 | 300 | 1060 | 900 | 1029 |
1600 | 1600 | 800 | 1180 | 1000 | 1508 |
1800 | 1800 | 1000 | 200 | 100 | 1320 | 1120 | 1970 |
2000 | 2000 | 1120 | 250 | 125/127 | 1500 | 1250 | 2696 |
2240 | 2240 | 1250 | 1700 | 1400 | 3799 |
2500 | 2500 | 1500 | 1900 | 1600 | 5027 |
2800 | 2800 | 1800 | 280 | 140 | 2120 | 1800 | 6503 |
3150 | 3150 | 1900 | 300 | 160 | 500 | 2300 | 2000 | 9916
|
